PDX12K

Regular price $1,299.00 Sale price$1,029.00 Save $270.00
/

Size
  • LIfetime + 7 Year Warranty
  • Australia Express Courier Dispatch
  • Free Shipping Australia Wide

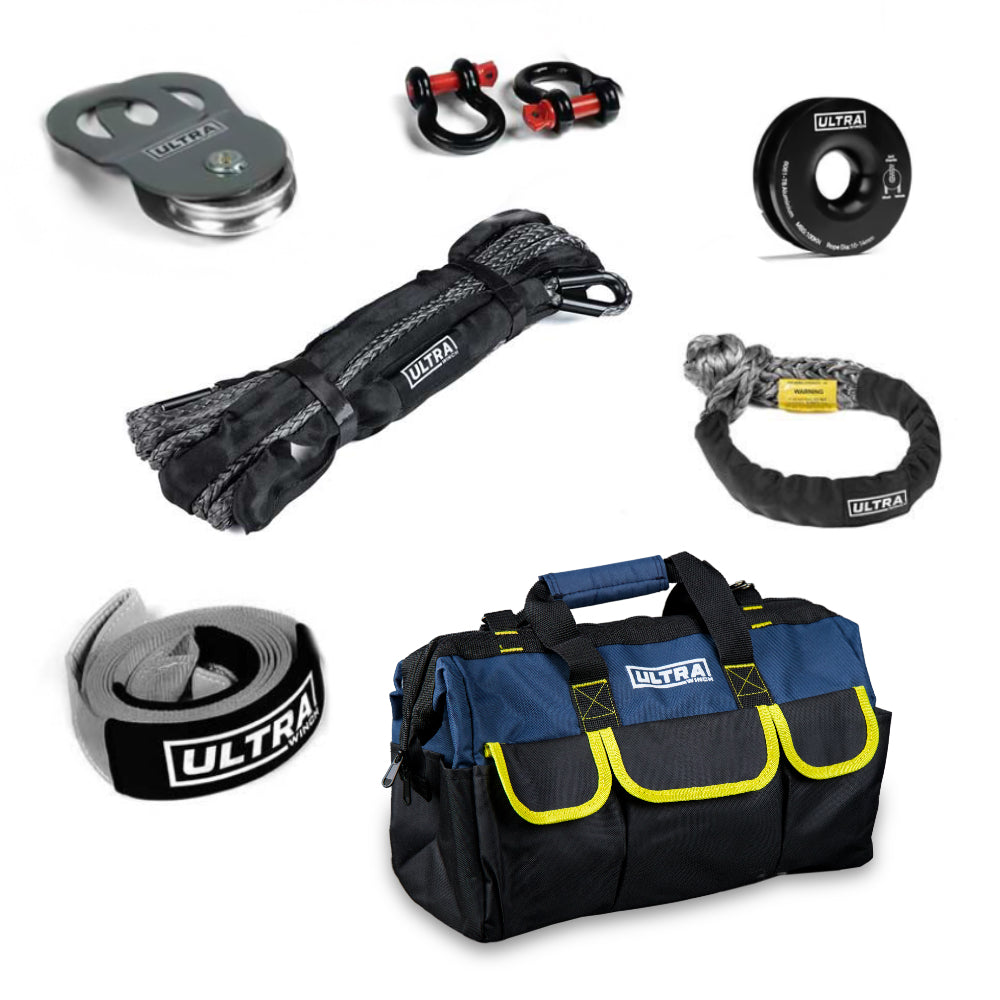

Bundle Deal (optional)



PDX Mk4
Black Friday Deal- Free Ultra Hook Included

In 2017, we witnessed the disappointing flaws of supposedly premium winches. Their cost-cutting designs included subpar 15mm2 wiring, insufficient for loads requiring 400+ amps. Determined to create something superior, we embarked on a new mission.

In 2019, we introduced the PDX: a game-changing winch with an all-alloy design. This revolutionary innovation not only achieved lighter weight and enhanced strength but also offered easier clutch rotation, improved fitment, and simplified servicing.

Today, we proudly present the pinnacle of our advancements: the PDX MK4.

Experience reliable performance with our ultra thick 50mm2 wiring, boasting over 8 times less resistance than others. Enjoy enhanced connectivity with three operational remotes included. Stunning all black wiring provides a stealthy look. Retaining pins hold the mounting nuts in place for easier installation where as others slide out as you lift the winch into place.

PDX MK4 Updates

Unmatched power

  • New Ultra heavy duty 50mm2 cross sectional wiring with black protective sheathing.
  • Ultra heavy duty Rugged 600A Solenoid.
  • New terminal post layout for easier wire connections.

More Connectivity

  • Mud-proof, recessed sockets for stronger controller connections in all conditions.
  • Industry first y-splitter allowing multiple control connections (In-cab + wired hand control + wireless remote)
  • New universal in-cabin rocker switch control.
  • Updated control box bracket allows control box to be mounted externally with less bolts.

New Accessories

  • Updated orange hook strap and remote lanyards.
  • All outdoor-rated metal badges.
  • Updated solid cross brace with IntegraPort design for future accessory integration.
  • Pre-fitted mounting nuts for easier installation.
  • New lighter-weight packaging for Australia-wide residential courier delivery.
  • Updated orange breather valve hose kit.

Free Courier Delivery Australia Wide📦

PDX Mk4 - 12,000lbs / 5443 KG /

PDX Mk4 - 9,5000lb / 4318 KG

  • 90º Rotatable clutch housing design for easy access
  • Lifetime Mechanical Warranty
  • 7 Year Electrical winch Warranty
  • 7 Year Water Ingress Warranty
  • Wired and wireless hand remote included
  • Winch hook with strap
  • Fairlead included
  • 235:1 Three stage planetary gearbox
  • Gears made from 42CrMo Alloy Steel
  • Rugged 600A Solenoid - IP67 Waterproof: Extension Wiring Relocation Kit Available (beware of exaggerated figures).
  • Battery Isolation Switch - Safety Key
  • 25Mx10.0mm 16,800lbs rated rope
  • 20.16kg Light Weight with synthetic rope. 22.5kg With Controller box, wiring and bolts.

PDX MK4 - Premium Electric Winch


Ready To Explore.

  • Pressure Free Power - Breather Kit.

    The included breather valve kit reduces air pressure build up from the 4.8KW motor during hard operation.
    Under rapid heating and cooling, conventional fully sealed winches can suffer from a build up in pressure resulting in seal failure.
    Fast negative pressure drop is the number one culprit for moisture ingress as a hot winch can easily suck in water when submerged and rapidly cooled. The breather valve kit is a must needed feature for any winch as it eliminates pressure differential ensuring maximum seal protection.

  • Relentlessly Powerful.

    The PDX takes an efficiency approach to winching, we don't believe in overly high powered motors which present fast speeds on paper, but in reality induce heat much faster and often strain batteries, overall reducing the duty cycle for a slower overall recovery.

    Designed to pull and keep pulling, our custom designed electric motor won't love you and leave you. From the balanced armatures, electroplated planetary gear sets and sealed, high speed bearings, every detail has been engineered to give you maximum performance.
    Genuine 6.5HP rated motor (4.8KW). Min battery 650CCA.





  • Longer Control Box Wires.

    Heavy duty gauge wiring means longer length and less resistance allowing for hidden control box installation to the sides of the bull bar or even behind the grille! As there is no wireless dongle needed and an in-cabin wired controller is included, access to the box is rarely needed so you can place it where you want to!
    Mechanical Brake - Zero Slip, Low Heat, Ultra Reliable!

  • Easiest Clutch Adjustment - Ever.

    Remove only four external hex bolts to freely rotate the clutch lever to a more accessible position. Commonly rotated 90ºCC for feet forward facing installation. No adjustment needed for feet down installs.

  • Ultra Reliable Mechanical Brake 🏗️


    100% Mechanical brake design is ultra reliable with low heat and low wear. Traditional winch brake systems are friction based causing unnecesary heat to the drum leading to synthetic rope degregation and slippage. The PDX brake will hold up to the steepest tracks - we've tested it vertically!

  • Three Way - Control.

    With PDX, recoveries start when you press winch in with a permanently active inbuilt wireless receiver, not when you're searching for wireless dongles to plug into a control box buried in mud. For redundancy a 3.5M wired hand controller is also included.
    New Unique In Cabin Controller: Reliable, direct access from inside the car.

  • Our strongest rope yet.

    Brace welded - solid eyelets means no elongations so your rope stays in one piece. 1500mm low friction, poly SLM sliding sheath offers reduces rope fraying over jagged rocks. Included heavy duty hook with large opening connects to tree protectors and soft shackles easily.



  • Thickest Winch Wiring - Ever.


    MK4 brings unmatched heavy duty 50mm2 wiring with elegant black protective sheathing fitted, all over. These winches can draw fifty times higher amperage than a wall power outlet, if you don't find your winch wiring impressive nor will your motor or battery. Australian first.
    Be Careful! Many winches claim huge horsepower motors, but a winch is only as powerful as it's battery supply and wiring!

DETAILS



WARRANTED WITH CONFIDENCE

  • 7 Year Electrical Warranty
  • 7 Year Water Ingress Warranty
  • Lifetime Mechanical Warranty

Lower Current = Less Wear & Tear

Line pull lbs(kgs)Line speed metre/min(inch/min)Current (Amps)
05.22m (205.5)65
2000(907)4.34m (170.8)125
4000(1818)3.1m (122)170
6000(2727)2.68 (105.5)215
8000(3636)2.3 (90.5)275
10000(4545)2.2(86)320
12000 (5454)2.1 (82)360



SPECIFICATIONS

Voltage12V DC
Rated To9500/12,000lbs - 4.3 / 5.44 tonnes
Rope10.0mm x25 Metres - MBS 16,800lbs
ControlWireless Remote + Wired In Cabin + Wired Handheld
Gear Train3 Stage Planetary - Sealed - 235:1 Ratio
BrakingMechanical Brake - To Side Of Drum - Internal.
HandleForged
Drum Size63.5mmx224mm
Motor6.5Hp - 4.8kW, Wound sealed
Mounting Bolt Pattern254x114.3mm
Dimensions (WxHxD)564mm x 281mm x 160mm
Weight20.16kg with synthetic rope fitted.

WHAT’S INCLUDED



  • Full Wiring Kit With Isolation Switch
  • Control box with Rugged Solenoid
  • PDX Winch MK4 - 9500/12,000lbs Winch
  • Wired Handheld Remote - 1x
  • Wired In Cabin Rocker Switch Remote - 1x
  • Wireless Remote - 1x
  • Wired splitter - two input connection
  • Universal Fairlead (Three positions)
  • Black Heavy Duty Hook
  • Orange Breather Valve Hose Kit
  • Mounting Bolts
